TOMAR's R37 Revolution Series LED DOT Bundle with colored lenses is designed to provide everything you need to add rugged, long-lasting performance to any vehicle build needing DOT-compliant stop, tail, turn, and reverse lamps.
These DOT lamps maintain the same durable functionality found in our Revolution Series and give you the option of incorporating a warning light into the third/reverse lamp using our Dual-Mode™ Technology - eliminating the need for an expensive and space-reducing fourth lamp.
All TOMAR DOT lamps meet total light output and optical light dispersion as required by FMVSS standards.
KEY FEATURES
- DOT Compliant Stop, Tail, and Turn Lamps
- Assembled in-house at TOMAR Headquarters in Gilbert, Arizona, USA
- Utilizes TOMAR’s superior Clear Vision Optics™ to maximize light output efficiently
- Hermetically-sealed patented design
- Built with UV-resistant Lexan
- Chrome and Black Bezels available for a finished, professional appearance (see product options)

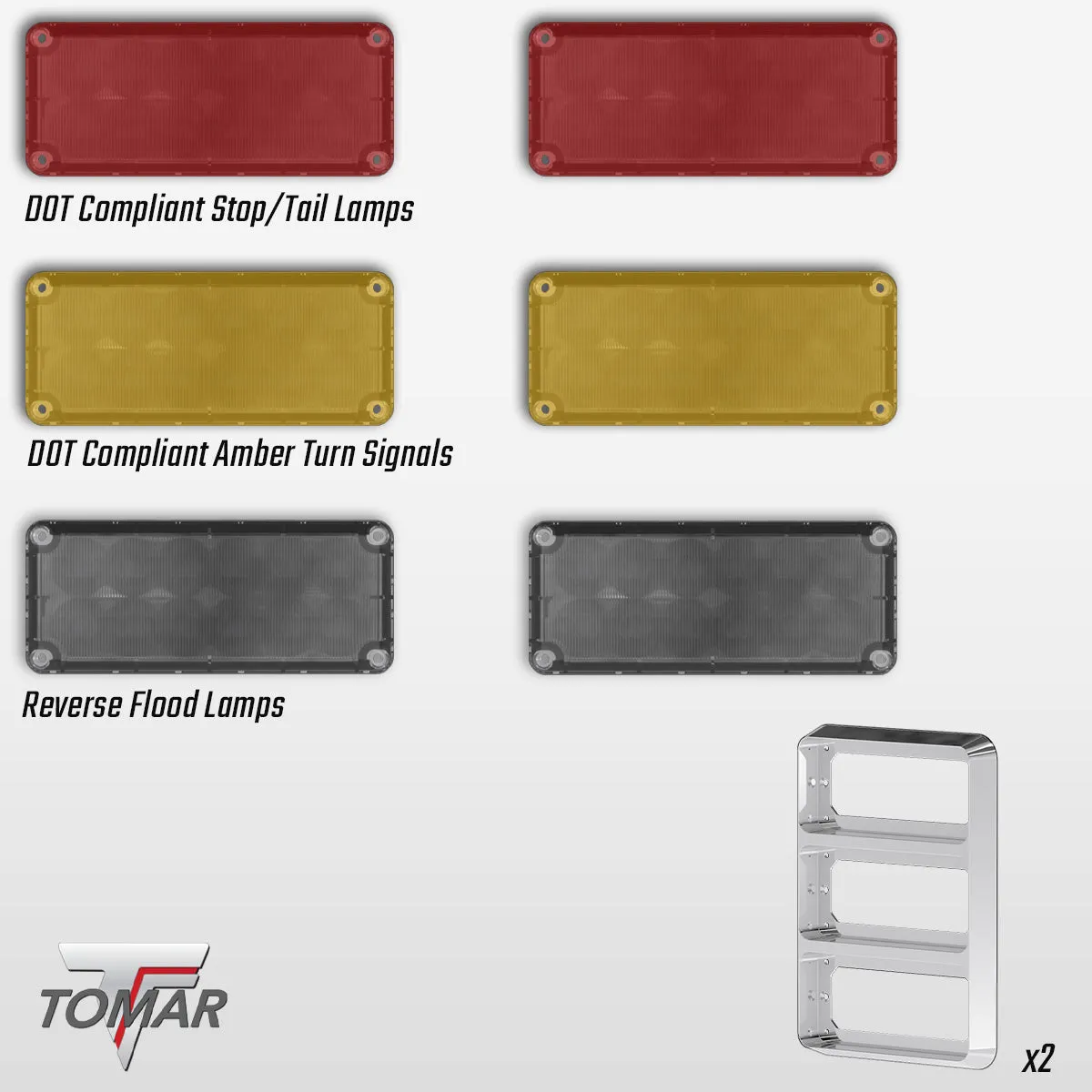

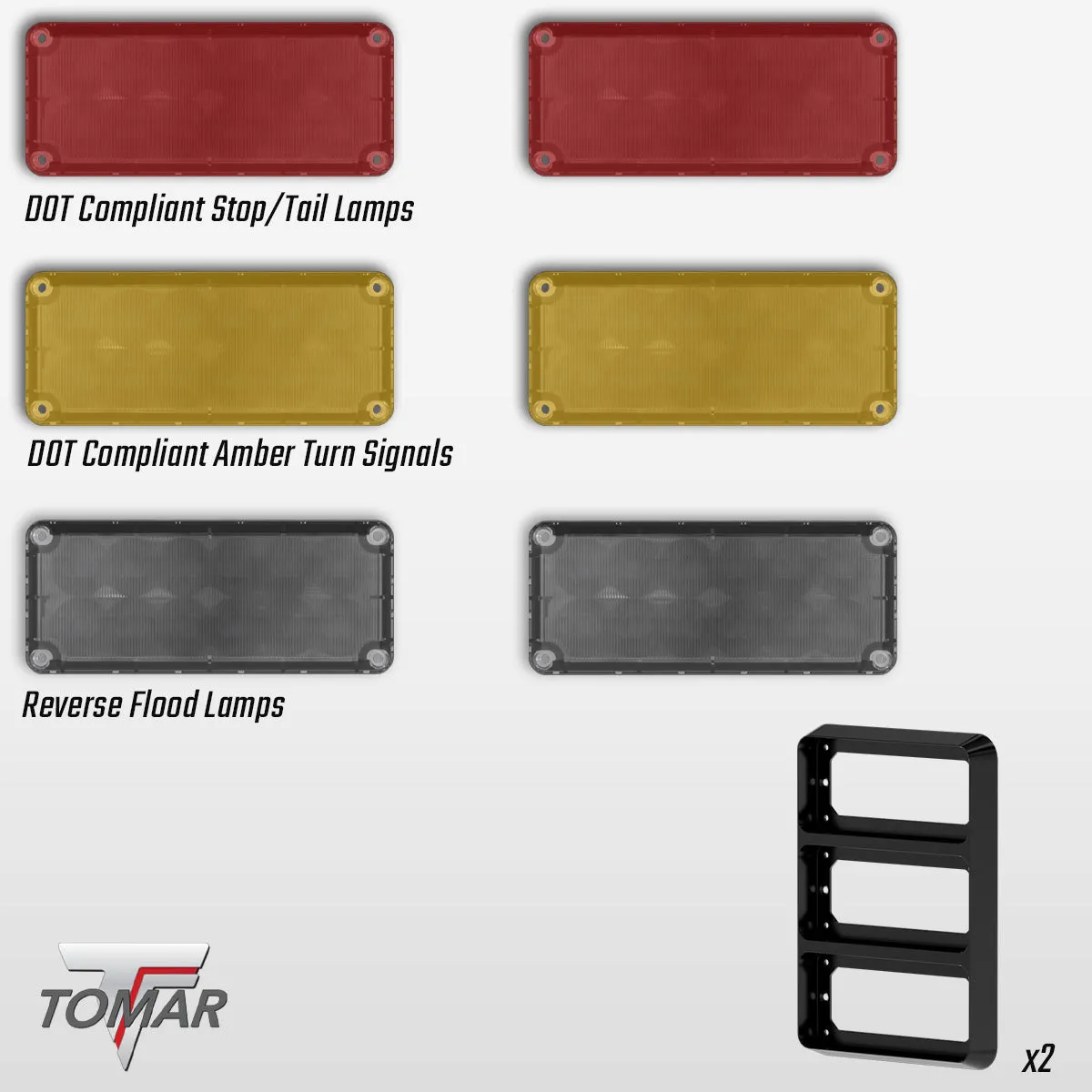

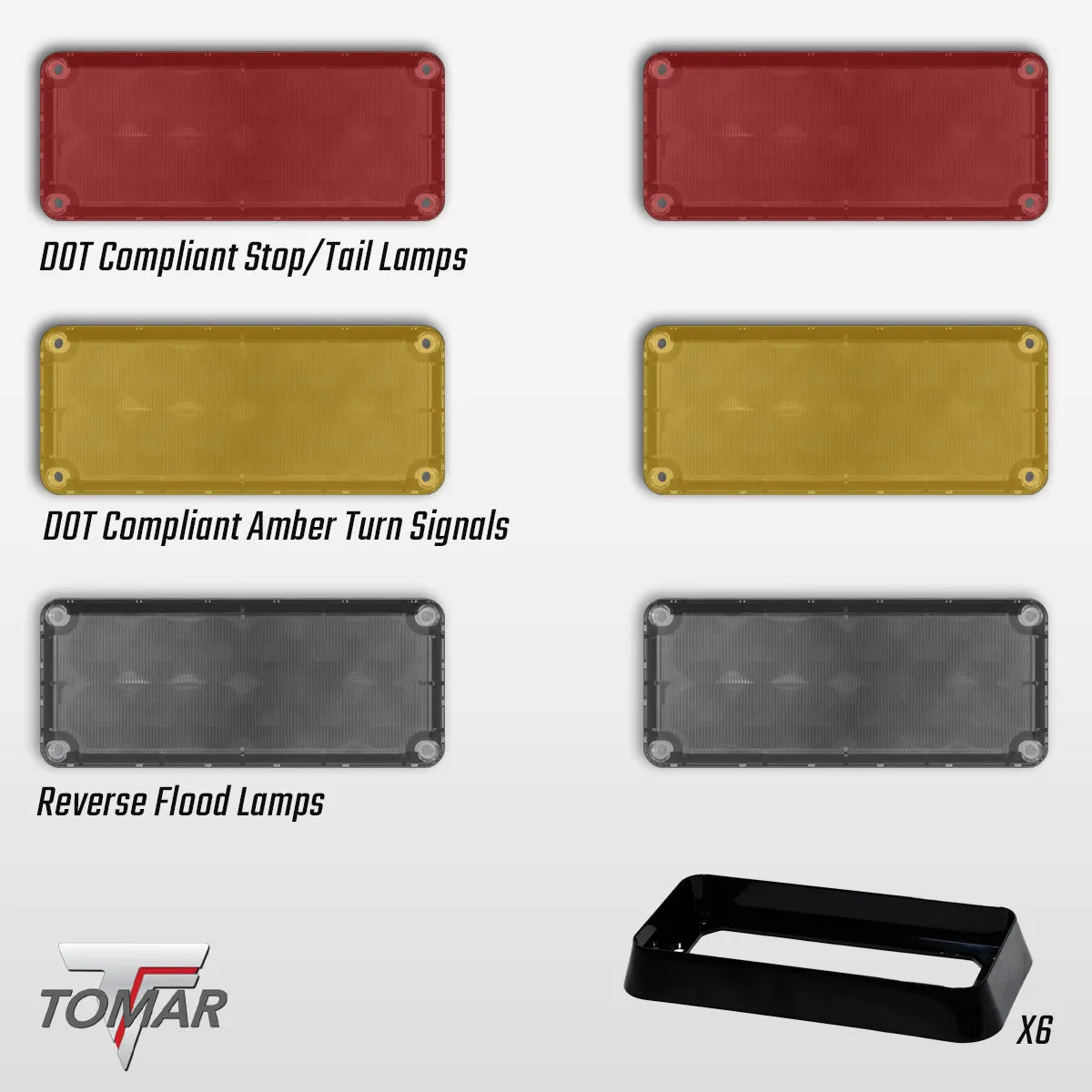

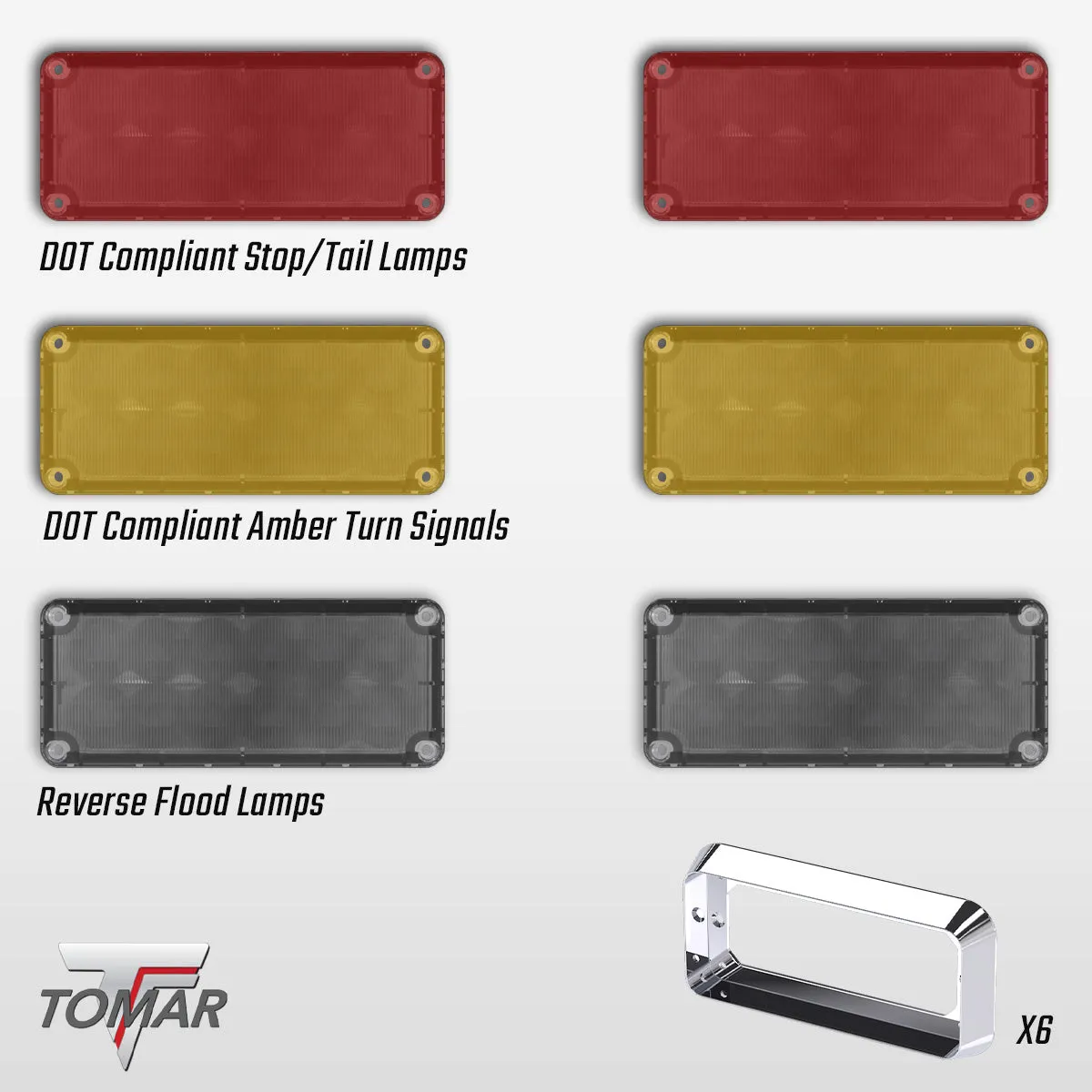

WHAT'S INCLUDED
- (2) x DOT-compliant red-tinted stop/tail lamps with selectable steady-on or stutter-on stop light activation.
- (2) x DOT-compliant amber-tinted turn signals.
- (2) x 13-Degree down-angled white reverse flood lamps OR optional Dual-Mode Warning Lamp Function (Dual-Mode Lamps provide lower Zone C warning and white reverse lamps in one lamp and shine horizontally/not angled down).
- Choice of (2) 3-stack bezels or (6) individual bezels with all required body-seal gaskets, in either Black or Chrome.
SPECS PER LIGHT (R37)
- Lamp Dimensions: 7.23w x 3.04h x 1.171d (18.59cm x 7.72cm x 2.97cm)
-
Bezel Dimensions:
- Single Bezel (R37-BZ/R37-BZ-B): 8.13” X 3.94”
- Tri-Bezel (R37-BZ3/R37-BZ3-B): 11.20” long x 8.15” wide x 1.06”
- Amp Draw: @12.8VDC
- Steady-on Lamps: 1.6 Amps
- Warning Lamps: 0.79 Amps
- DOT LAMPS
- R37L-STT-Stop Mode = 0.39 Amps / Tail Mode = 0.02 Amps
- R37L-TURN-Flashing = 1.06 Amps
NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):
| Model | Single | Double | Neobe |
|---|---|---|---|
|
R37L-W-A (Single Color) |
969,975 | 484,988 | 678,983 |
|
R37L-W-B (Single Color) |
701,325 | 350,663 | 490,928 |
|
R37L-W-R (Single Color) |
897,675 | 448,838 | 628,373 |
|
R37L-W-W (Single Color) |
2,286,150 | 1,143,075 | 1,600,305 |
|
R37LD-W-A (Dual-Color) |
847,125 | 423,563 | 592,988 |
|
R37LD-W-B (Dual-Color) |
540,675 | 270,338 | 378,473 |
|
R37LD-W-R (Dual-Color) |
740,250 | 370,125 | 518,175 |
|
R37LD-W-W (Dual-Color) |
1,719,999 | 860,000 | 1,203,999 |
