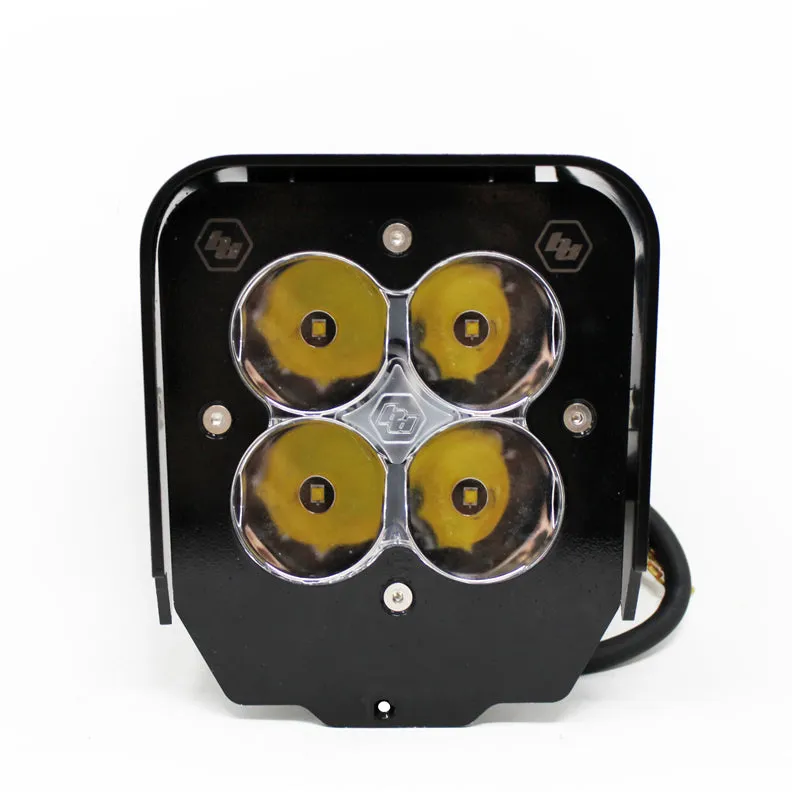

The Husqvarna XL80 has been designed for the enthusiast and the racer looking to extend their ride time and annihilate the night. This kit features an extreme amount of beam pattern adjustability. Our High Speed Spot Reflectors provide record setting distance, wide peripheral spread.

A seamlessly smooth beam pattern, and offers a 20 percent dimming feature. With the amount of light produced by the XL80 you will have an extreme blend of near field and mid field lighting. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: OEM Headlight shell Not included.

(Does Fit 701 Model)

Note: Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (12-2004) (please provide year/make/model of bike).

Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee
• Limited Lifetime Warranty - Complete Purchase Protection
• uService - Replaceable Lenses And Optics
• ClearView - All The Light, Right Where You Need It.
• MoistureBlock - Waterproof, Rain Proof, Submersible
• CopperDrive - Only LED Driven At 100 percent
• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 9,500 Utilizing 4 Cree LEDs
• Wattage/Amps: 80W / 5.50A
• Weight: 2.45 lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hardcoated Polycarbonate
• Housing: Hard Anodized and Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware and Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft and Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Includes:

XL80 Husqvarna (20 - On) LED Light Kit

Patterns:

High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Specifications:
