Product Details

Two is always better than one, right? We think so, which is why were offering a pair of XL-R Sport LED auxiliary lights with wiring harness. The XL-R Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL-R Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern.

The XL-R Sport provides the same top of the line performance and aesthetics you expect from BD in an affordable solution. All Baja Designs LEDs are backed by a 30 Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.
Note: A Skene dimmer must be purchased separately to enable the high/low feature.
Baja Designs Features:

  • Satisfactions Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent

5000K Daylight - Less Driver Fatigue, Natural Color Specifications (per light):

  • Lumens: 3,150 Utilizing 4 LEDs
  • Wattage/Amps: 26W / 2A

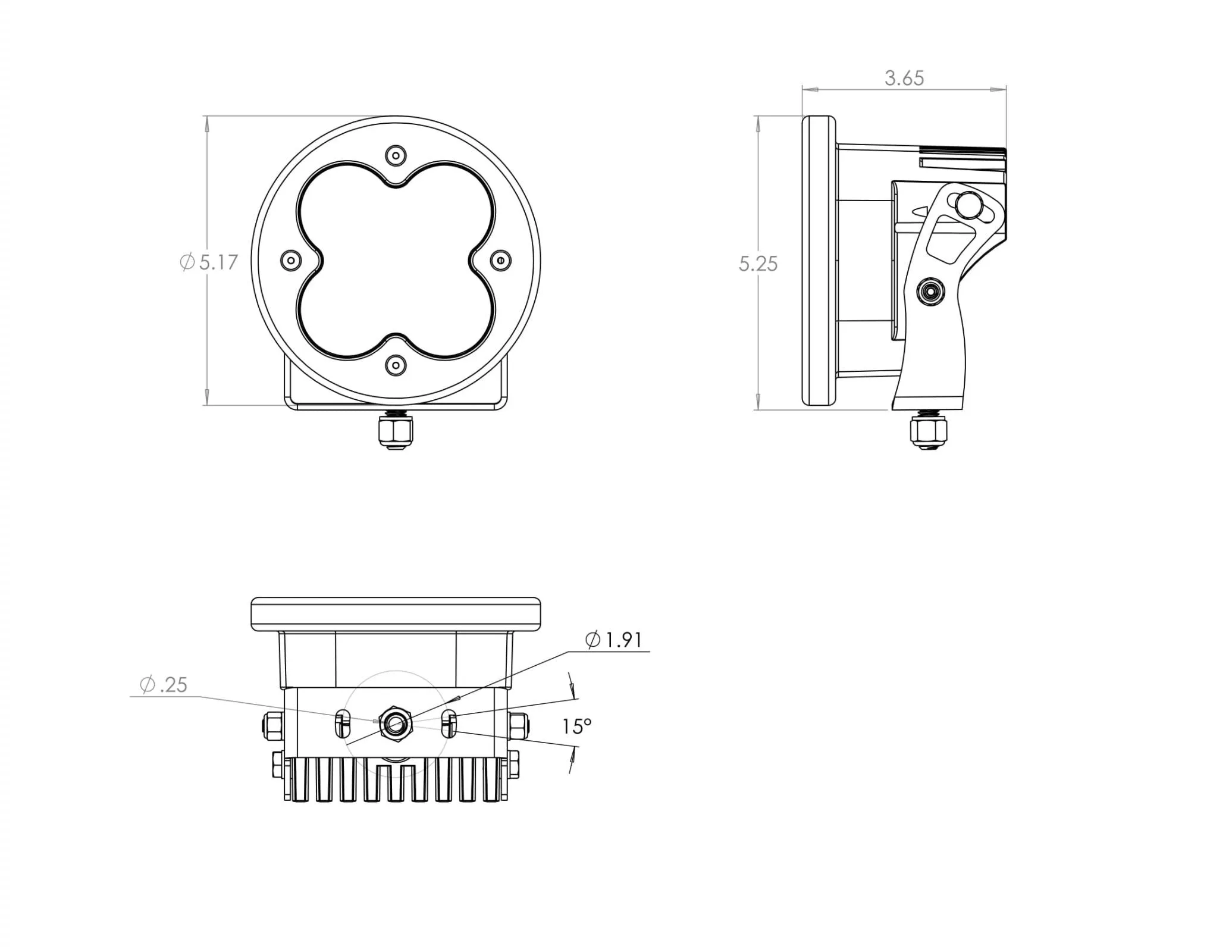

  • Dimensions: 5.24 inch x 3.65 inch x 5.24 inch
  • Weight: 2.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

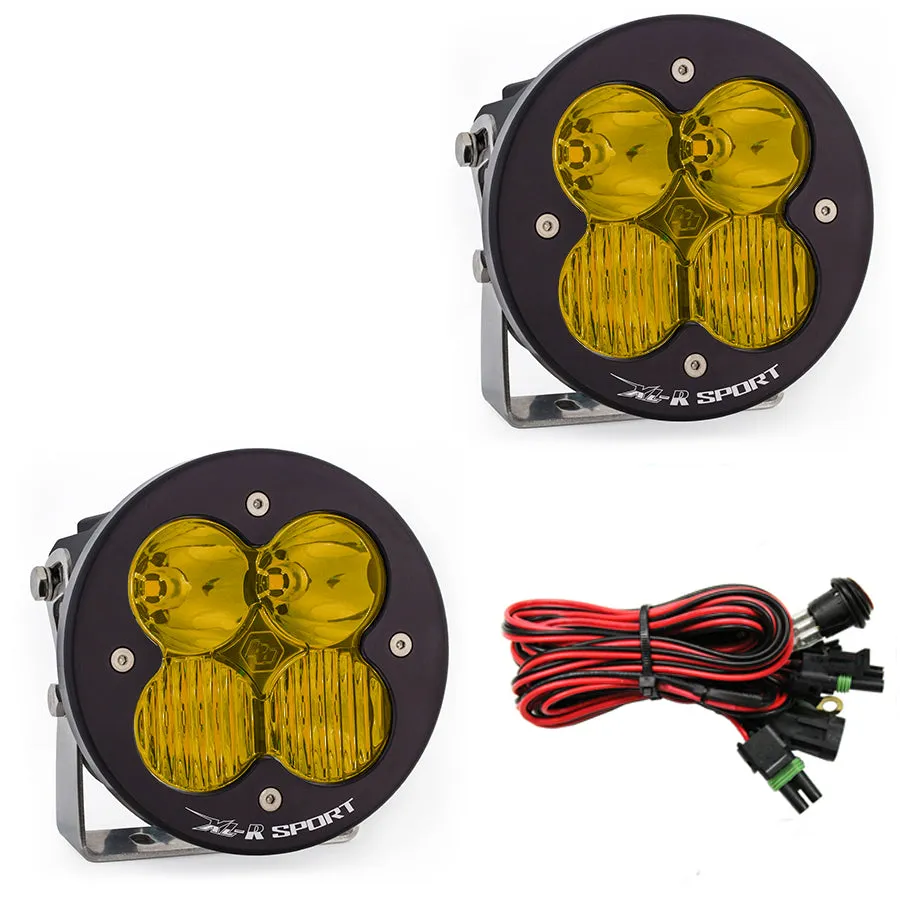

  • (2) XL-R Sport LED Lights
  • Mounting Bracket
  • Wiring Harness

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)



Specifications:

bezel_material Billet Machined Aluminum
bracket_material Stainless Steel
brackets_included Yes
brand_logo
finish_l Powdercoat
height 5.0
housing_type Powder Coated Cast Aluminum
ik10_compliant IK10 Compliant (Mechanical Impact Testing)
last_update 2022-05-15 03:46:36
length 12.0
lens_color Amber
lens_material Hard Coated Polycarbonate
life_span_expectancy 49,930 Hours
light_pattern Driving/Combo
LTL N
prop_65_warning CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
Series XL R Sport Series
sold_as Pair
Universal Yes
vehicle_type ATV/UTV|Jeep|Motorcycle|Truck/SUV
Warranty Lifetime Limited
weight 4.0
width 8.0
Baja Designs 577813 XL-R Sport Pair Driving/Combo Amber Baja Designs
  • DefaultTitle

$ 55.60

$ 42.77
